Traverse Type
SEKO series
Pneumatic, servo hybrid type take-out robot
  • facebook
  • twitter
DOWNLOAD
Product line
  • SEKO-208i
  • 208is
  • SEKO-509
  • 509s
  • SEKO-510
  • 510s
Application field

  • Automotive

  • Packaging

  • PET-Preform

  • Micro & Precision

  • Home Appliance

  • Consumer Goods

  • Mobile

  • Medical

  • ETC

Common specifications
  • ▶I.M.M (ton)　 　　　80~350 (Horizontal I.M.M)

    ▶Traverse (mm)　　　1,200 / 1,600

    ▶Vertical (mm)　　　 800 / 900 / 1,000 (Non-Telescopic arm, Telescopic arm)

    ▶Driving method 　　Vertical, Crossswise : Air Cylinder, Traverse : AC Servo

    ▶Payload (Kg) 　　　 2 / 5 (Including weight of chuck unit)

    ▶Power source　　　 AC 220V, 50/60 Hz
Drawing

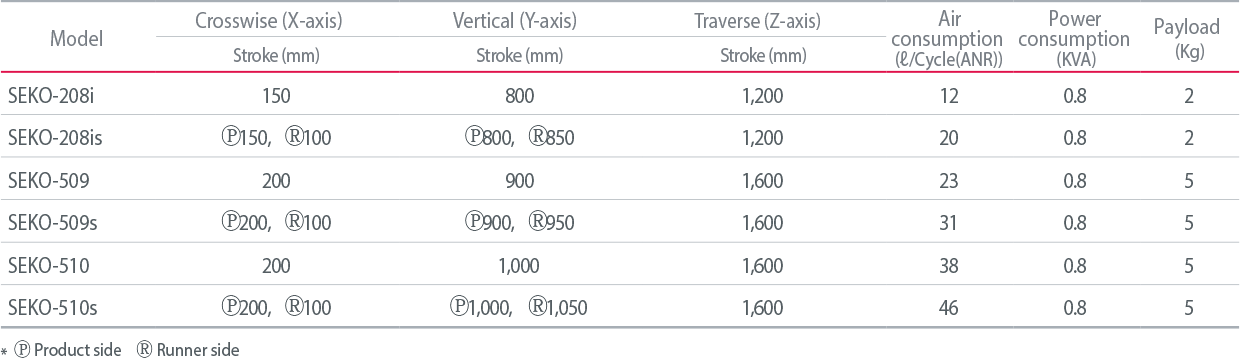

General specification

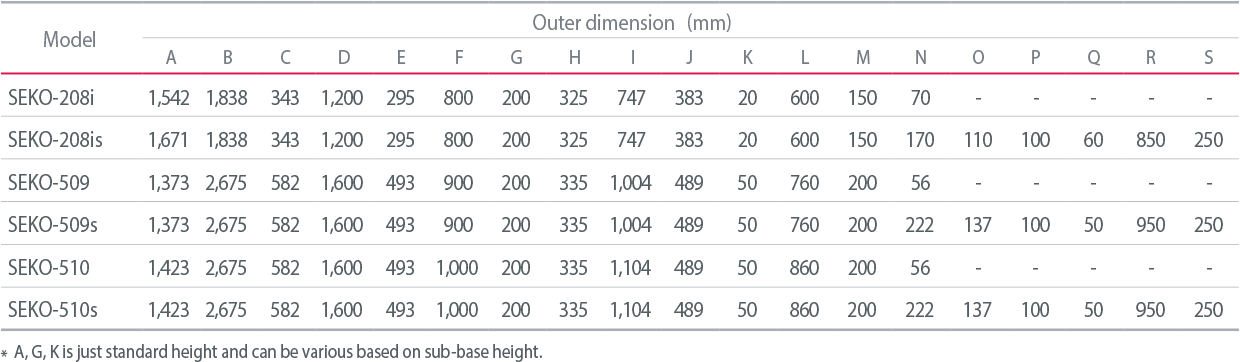

Dimensions
Purchase consultation
